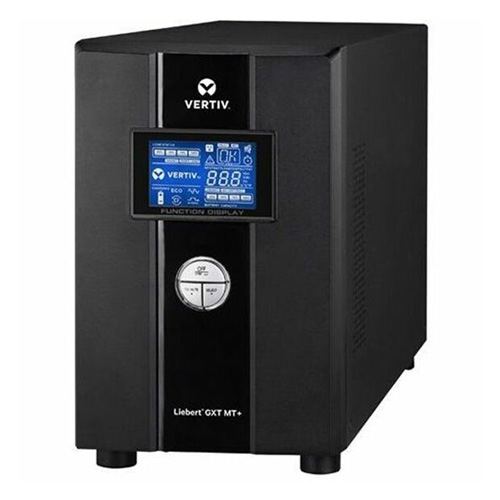

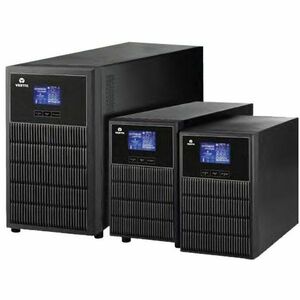

Vertiv Liebert GXT MT+ CX UPS | 1kVA | SB | Standard Run | Double Conversion
Overview
Vertiv Liebert GXT MT+ UPS True Online UPS from 1000 to 3000VA
The Vertiv Liebert GXT MT+ UPS is an online double conversion UPS solution which offers premium power outage protection and continuous power conditioning in a compact and flexible deployment system. It protects critical equipment against outages and every type of power disturbance without drawing on battery power, which extends battery life and minimizes replacements. This single-phase UPS operates with high power efficiency is intended for both centralized and edge applications. The UPS features total isolation of the load from the mains - isolating input and output sections, and making the systems ideal for Data Networks / Small Data Centers/VOIP Applications application. The unit supports hot standby configuration, making it suited for critical applications like banks.
The Vertiv Liebert GXT MT+ UPS includes:
- Reliable, easy-to-manage power protection and battery backup with capacity of 1/2/3 kVA capacity
- High power factor (PF 0.8) ensures the connection of more loads and IT equipment
- With Configurable to energy saving mode (ECO)
- User-friendly interface includes LCD display for operational convenience and status/fault information
- Remote Monitoring is available through USB/RS232, and optional via dry contacts and SNMP
Gallery
Manufacturer-Brochure
Specifications
General informations
Manufacturer :
Vertiv
Manufacturer Part Number:
536600013016
Manufacturer Website Address:
Brand Name:
Vertiv Liebert
Product Series:
1000
Product Model:
GXT MT+ CX
Product Name:
GXT MT+ CX 1kVA UPS 800W 230V Online Double Conversion UPS
Marketing Information:
The Vertiv Liebert GXT MT+ CX 1 kVA SB Uninterruptible Power Supply is a high-performance, true online double conversion system designed for critical applications like data centers and financial institutions. It is equipped with an IGBT-based rectifier, and its DSP control technology helps ensure reliability. The unit has a new LCD display for easy monitoring of UPS data, alarms, and fault diagnostics. It offers a double-conversion efficiency of up to 90% and has an active uinput power factor correction of .99. With a wide input voltage range of 110-280 Vac, configurable output voltage options, and generator compatibility, the GXT MT+ CX is optimized for various environmental conditions. Its 4-stage extendable charging design and adjustable battery charging current enhance battery performance and runtime. The UPS also supports intelligent monitoring through standard RS232/USB ports and has a slot for additional communication options.
Product Type:
Double Conversion Online UPS
Technical information
AVR:
Yes
Receptacle Type:
IEC 60320 C13
Receptacle Detail:
3 x IEC 60320 C13
Dataline Protection:
No
Protection Type:
- Fuse
- Brownout
- Output Short Circuit
- RFI
- Surge
- Under Voltage
- Black Out
- Power Failure
- Output Over Voltage
- Over Charge
- Noise
- Short Circuit
- Thermal Overload
- Deep Discharge
- Soft Start
- Over Temperature
- Over Loading
- Inrush Current
- EMI
- AC Noise
- Sag
- Electric Shock
- Lightning
- Temperature
- Transient
- Discharge
- Quad
- Output Over Current
- Low Battery
- High/Low Voltage
- Over Current
- Electronic Current Limit
- Under Current
- Line Noise
- Over Voltage
- Spike
- AC Surge
- Over Power
- Excessive Low Battery
Overload Protection:
Yes
Bypass Switch:
Yes
Phase:
Single Phase
Application/Usage:
- VoIP
- Bank
- Data Center
- Voice/Data Network
- Mission Critical Equipment
- IT Infrastructure
Power Description
Load Capacity (VA):
1 kVA
Load Capacity (Watt):
800 W
Input Voltage:
230 V AC
Output Voltage:
240 V AC
Waveform Type:
Sine Wave
Controls/Indicators
Status Indicators:
LCD
Interfaces/Ports
Serial Port:
Yes
VGA:
No
Modem (RJ-11):
No
Network (RJ-45):
Yes
USB:
yes
Battery Information
Backup/Run Time (Half Load):
15 Minute
Hot Swappable:
No
Physical Characteristics
Height:
22 cm (8.66")
Width:
14.48 cm (5.70")
Depth:
28.19 cm (11.10")
Rack Height:
5U
Form Factor:
Tower
Weight (Approximate):
9.80 kg
Miscellaneous
Energy Star:
No
Country of Origin:
China
TAA Compliant:
No
Warranty
Limited Warranty:
1 Year
