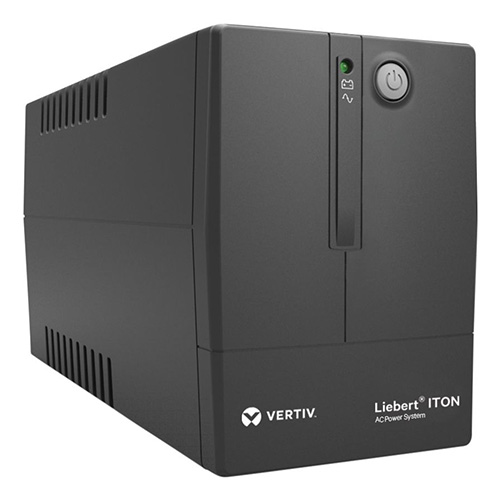

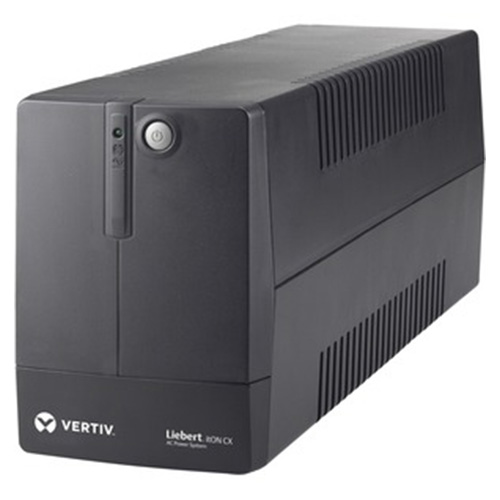

Vertiv Liebert ITON CX UPS | 600VA | 230V | 1 x 7AH battery
Overview
Latest technologies in power protection and back up for Offices and Home
The Vertiv Liebert ITON CX is an economical line-interactive UPS that offers full-featured power protection for home or small office computers and electronic equipment. With it’s unique features and extraordinary performance not normally found in similar products in range. The Vertiv Liebert ITON CX UPS includes:
- Excellent microprocessor control with high reliability
- AVR boost and buck for voltage stabilization
- Auto restart while AC is recovering
- Simulated sine wave
- Auto charging at Off-mode
- Cold start function
- Generator compatible
- Supports Wi-Fi Route
Liebert ITON CX 600 VA with 1 X 7 AH Battery
Vertiv Liebert itON CX UPS 600VA/360W 230V Line Interactive AVR
- Battery Power : 7AH * 1
- Runtime at 100 Watts : 30min
- Battery/Surge Output : Yes
- LCD/LED Display : LED
- Dataline Surge Guard : No
- Voltage Regulation : plus/minus 10%
- USB Port :No
- Back up time (Half Load): 5min
- Surge Only Outlets : No
- Unit Weight (lbs) : 9.2
- Unit Dimensions WxDxH (inches): 11 X 4 X 5.5
Vertiv Liebert itON CX UPS 1000VA/360W 230V Line Interactive AVR
- Battery Power : 7AH * 2
- Runtime at 100 Watts : 60min
- Battery/Surge Output : Yes
- LCD/LED Display : LED
- Dataline Surge Guard : No
- Voltage Regulation : plus/minus 10%
- USB Port : No
- Back up time (Half Load): 5min
- Surge Only Outlets : No
- Unit Weight (lbs) : 22
- Unit Dimensions WxDxH (inches): 14.5 X 5.5 X 6.2
videos
Gallery
Tour
Manufacturer-Brochure
Specifications
General informations
Manufacturer :
Vertiv
Manufacturer Part Number:
536106003004
Manufacturer Website Address:
http://www.vertiv.com/
Brand Name:
Vertiv Liebert
Product Line:
itON
Product Model:
ITON CX 1000 VA
Product Name:
ITON CX UPS 1000VA/360W 230V Line Interactive AVR
Marketing Information:
The Vertiv Liebert® ITON™ 600VA CX is a cost-effective, line-interactive uninterruptible power supply unit that offers power protection and battery backup for home or small office computers and other critical electronic equipment. Equipped with two 7Ah batteries, it helps ensure reliable performance even during power disruptions. This generator-compatible UPS has an AVR for voltage stabilization, and a cold start function for emergency power, making it a dependable solution for maintaining your devices' uptime.
Product Type:
Line-interactive UPS
Technical information
AVR:
Yes

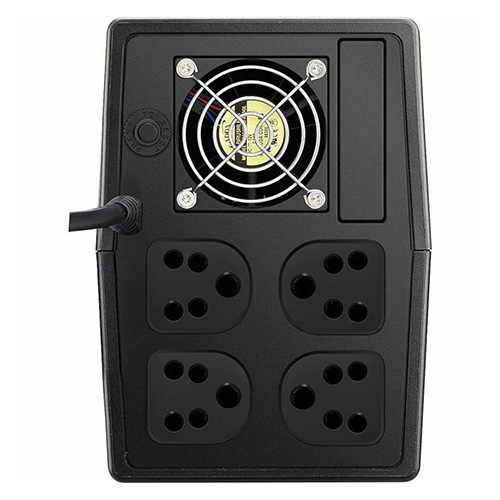

Receptacle Type:
Indian Socket
Receptacle Detail:
4 x Indian socket
Dataline Protection:
No
Protection Type:
- Fuse
- Brownout
- Output Short Circuit
- RFI
- Surge
- Under Voltage
- Black Out
- Power Failure
- Output Over Voltage
- Over Charge
- Noise
- Short Circuit
- Thermal Overload
- Deep Discharge
- Soft Start
- Over Temperature
- Over Loading
- Inrush Current
- EMI
- AC Noise
- Sag
- Electric Shock
- Lightning
- Temperature
- Transient
- Discharge
- Quad
- Output Over Current
- Low Battery
- High/Low Voltage
- Over Current
- Electronic Current Limit
- Under Current
- Line Noise
- Over Voltage
- Spike
- AC Surge
- Over Power
- Excessive Low Battery
Overload Protection:
Yes
Bypass Switch:
No
Transfer Time:
6 ms
Phase:
Single Phase
Application/Usage:
- Desktop Computer
- Electronic Equipment
- Home
- Office
- IT Equipment
- Network Bridge
- Network Hub
- Router
- POS Terminal
- Workstation
- Mission Critical Equipment
Power Description
Load Capacity (VA):
1 kVA
Load Capacity (Watt):
600 W
Input Voltage:
230 V AC
Output Voltage:
230 V AC
Waveform Type:
Simulated Sine Wave
Controls/Indicators
Status Indicators:
LEDs
Interfaces/Ports
Serial Port:
No
VGA:
No
Modem (RJ-11):
No
Network (RJ-45):
No
USB:
No
Battery Information
Backup/Run Time (Full Load):
1 Minute
Backup/Run Time (Half Load):
10 Minute
Hot Swappable:
No
Physical Characteristics
Height:
15.80 cm (6.22")
Width:
13.97 cm (5.50")
Depth:
36.83 cm (14.50")
Rack Height:
4U
Form Factor:
Tower
Weight (Approximate):
9.98 kg
Miscellaneous
Energy Star:
No
Country of Origin:
China
TAA Compliant:
No
Environmentally Friendly:
No
Warranty
Limited Warranty:
1 Year
